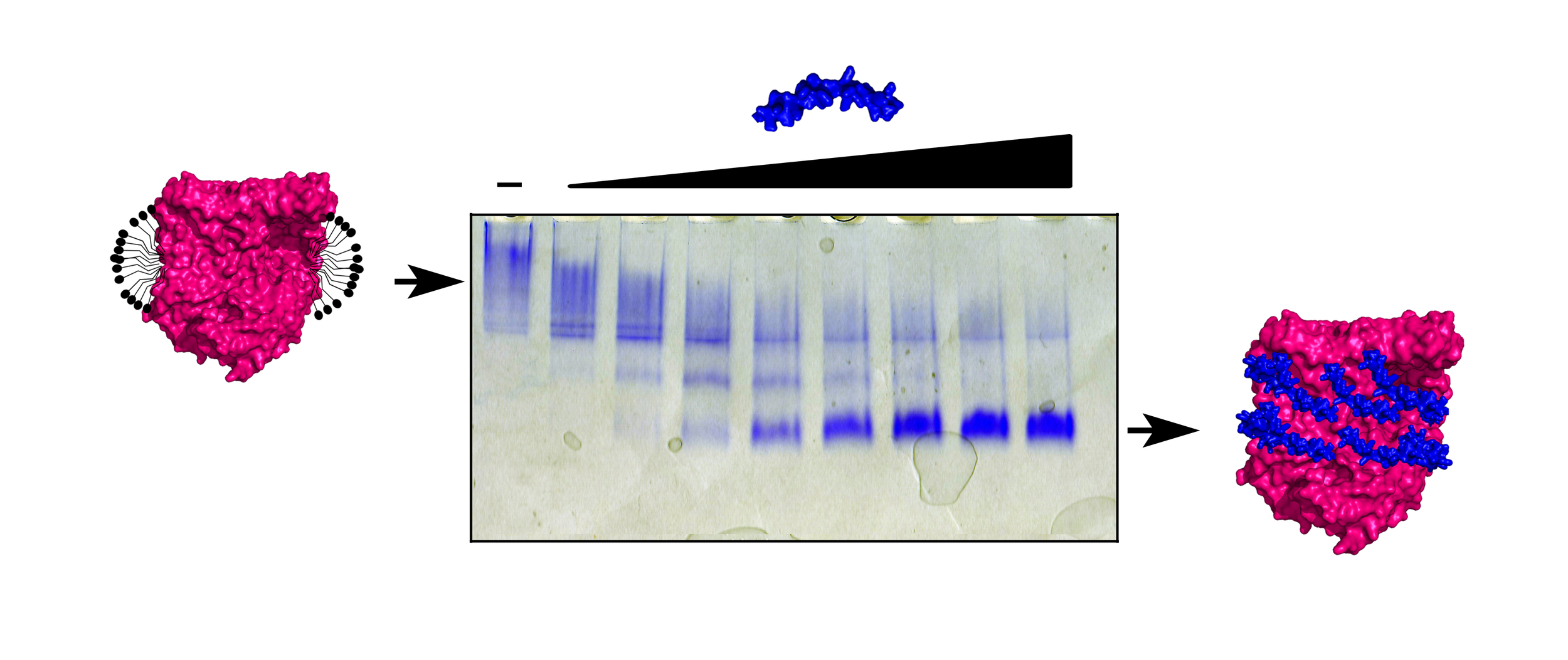

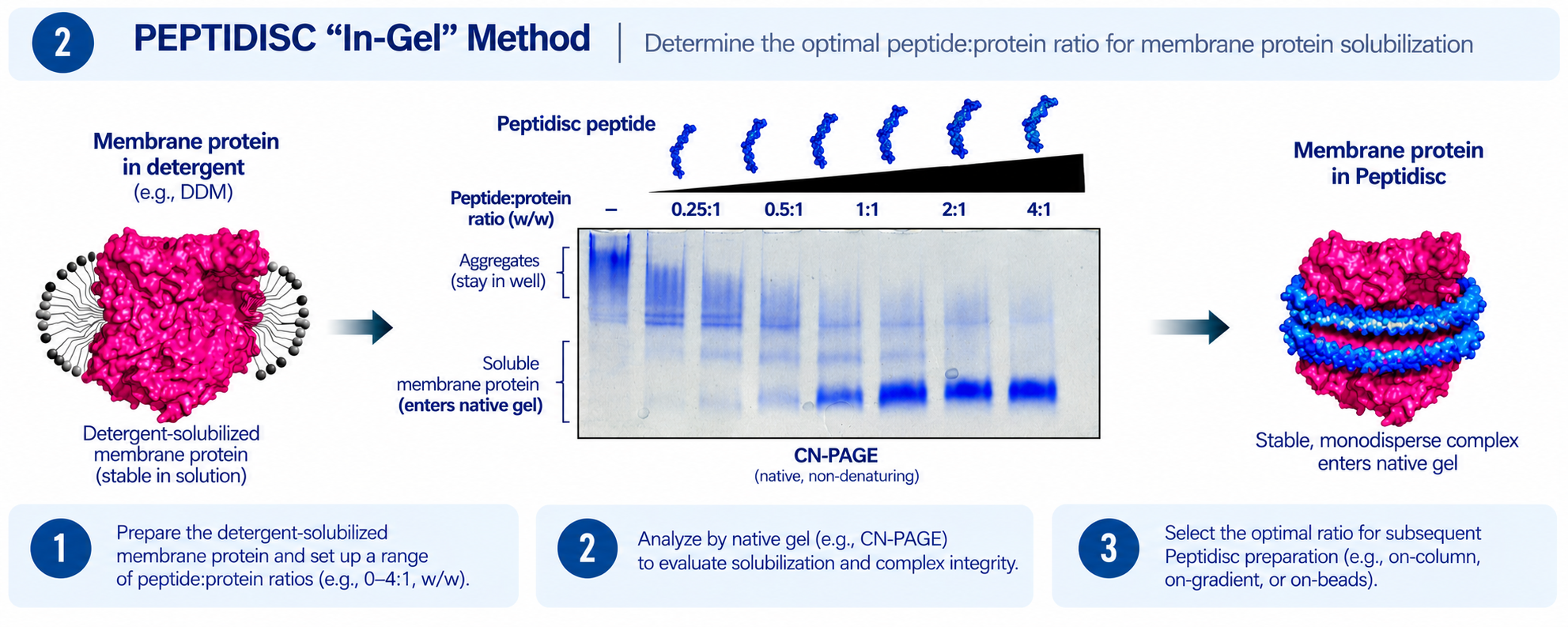

The "in-gel" method - to rapidly determine what is the optimal peptide to protein ratio

1.    Combine the purified membrane protein with increasing amounts of peptides.

2.    Load on a native-gel, run electrophoresis, stain the gel.

3.    Determine what is the optimal peptide to protein ratio (i.e last right lane on the gel below).

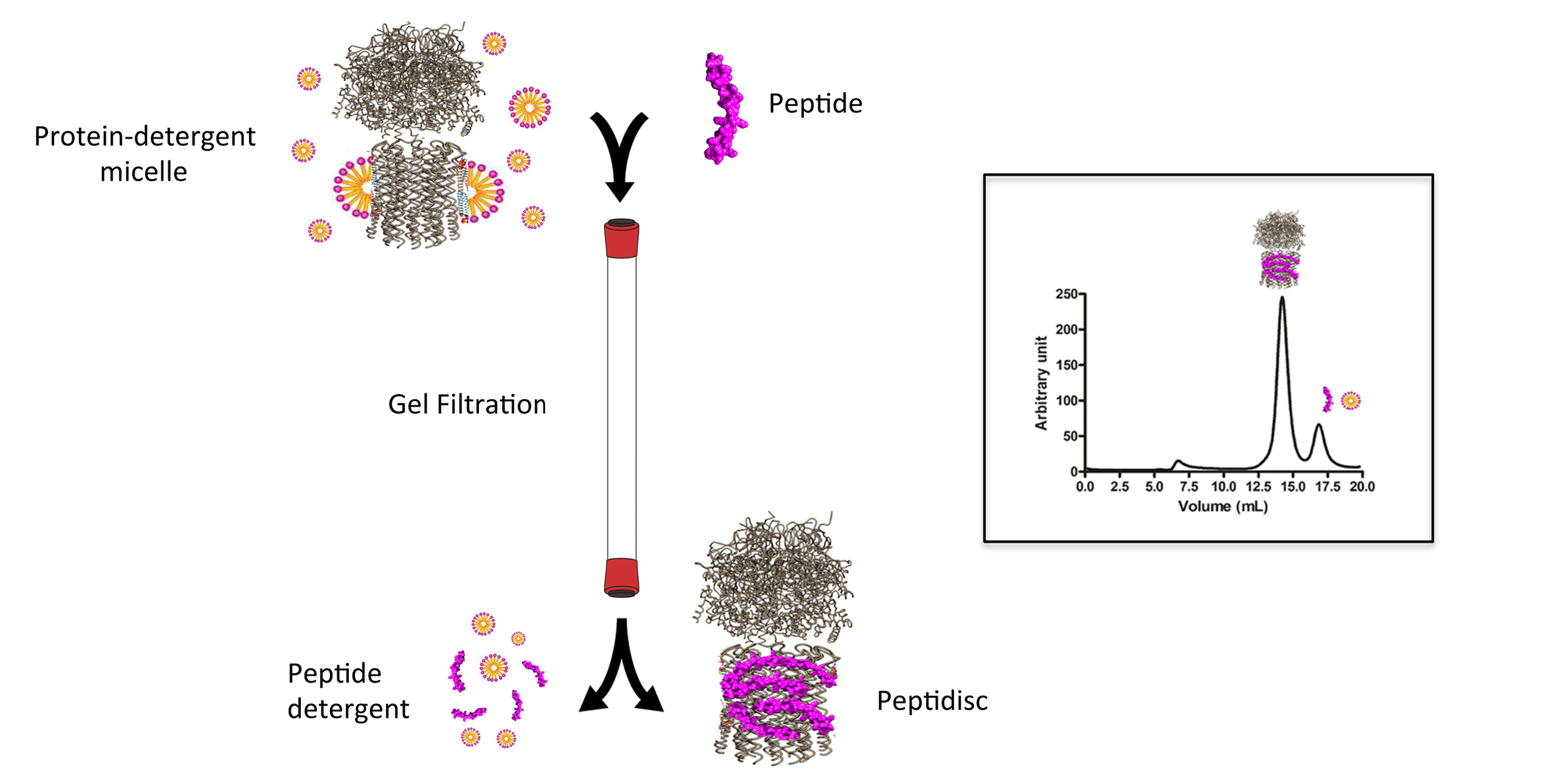

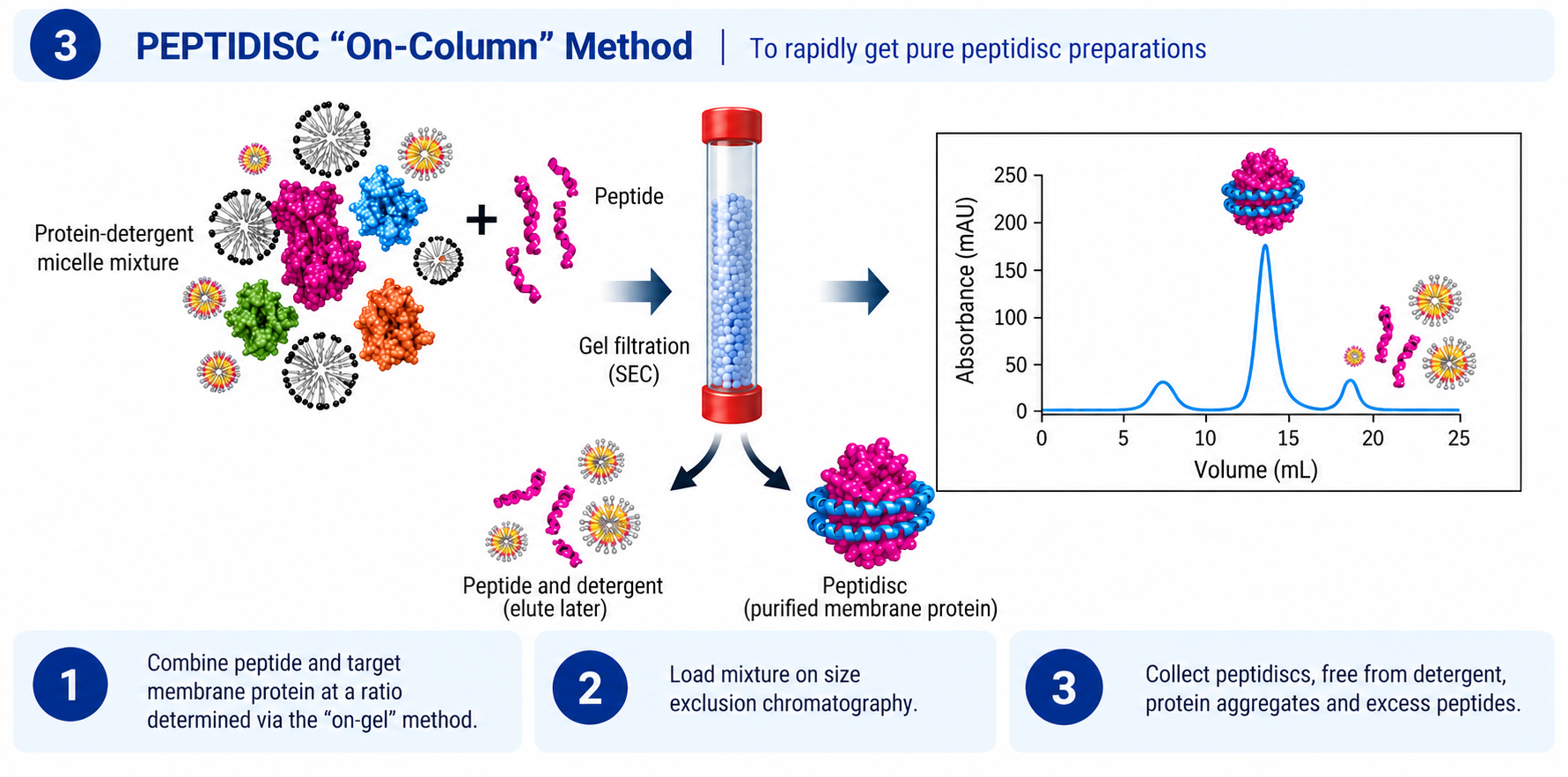

The "on-column" method - to rapidly get pure peptidisc preparations

1.    Combine peptide and target membrane protein at ratio determined via the "on-gel" method.

2.    Load mixture on size exclusion chromatography.

3.    Collect peptidiscs, free from detergent, protein aggregates and excess peptides.

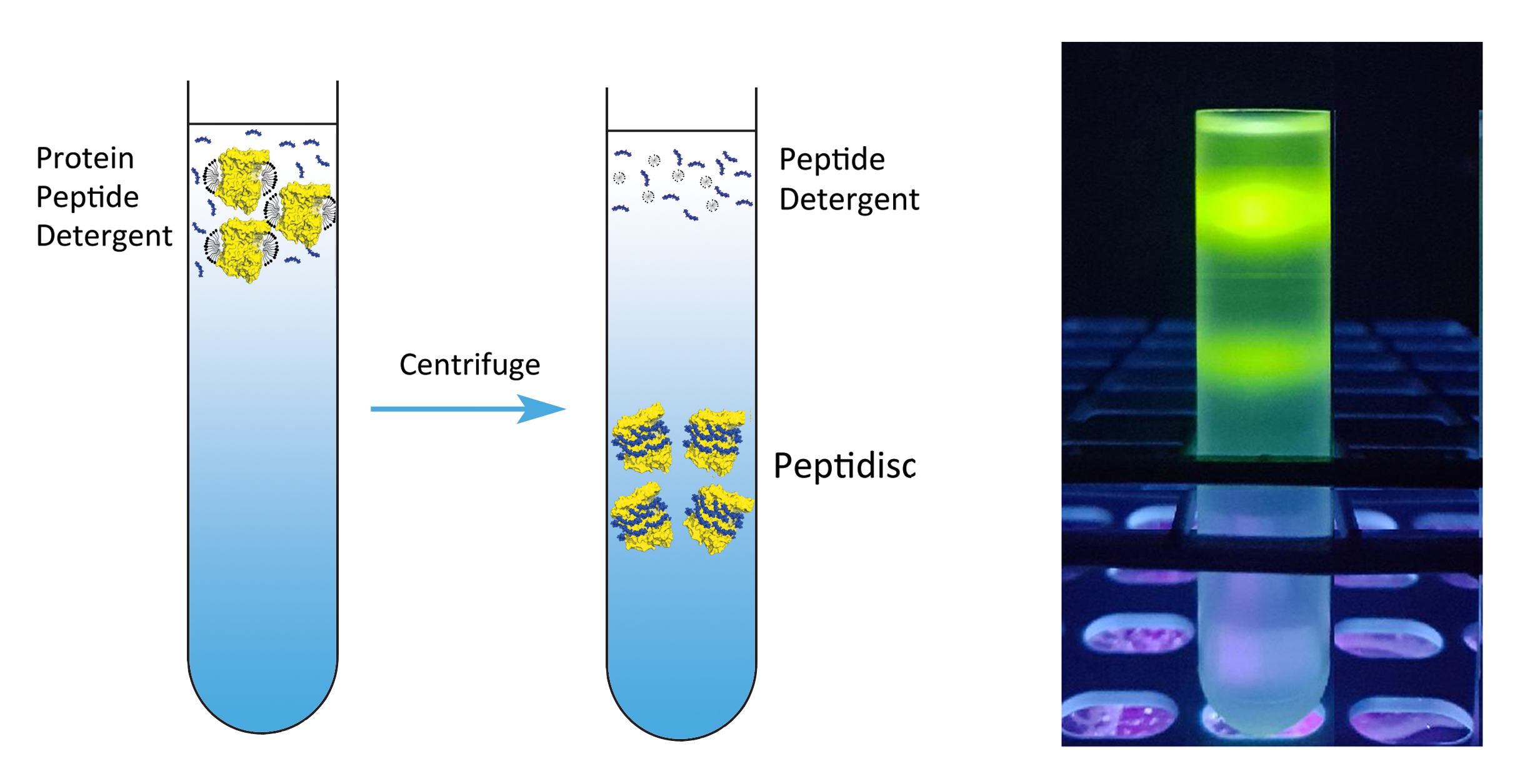

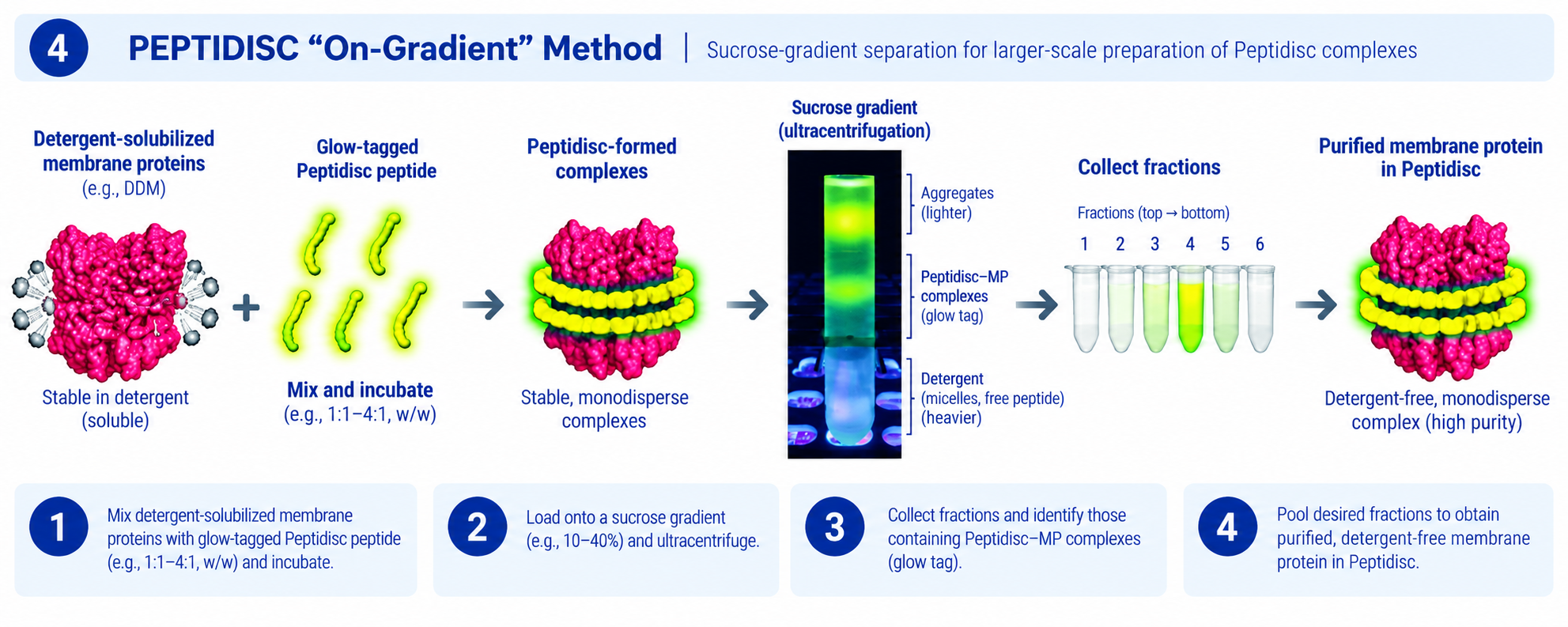

The "on-gradient" method - for large scale peptidisc preparations

1.    Combine peptide with target membrane protein at ratio determined via the "on-gel" method.

2.    Load on linear sucrose gradient (e.g 4%-12%).

3.    Ultra-centrifuge overnight in swinging rotor.

4.    Collect peptidiscs, free from protein aggregates, detergent and excess peptides.

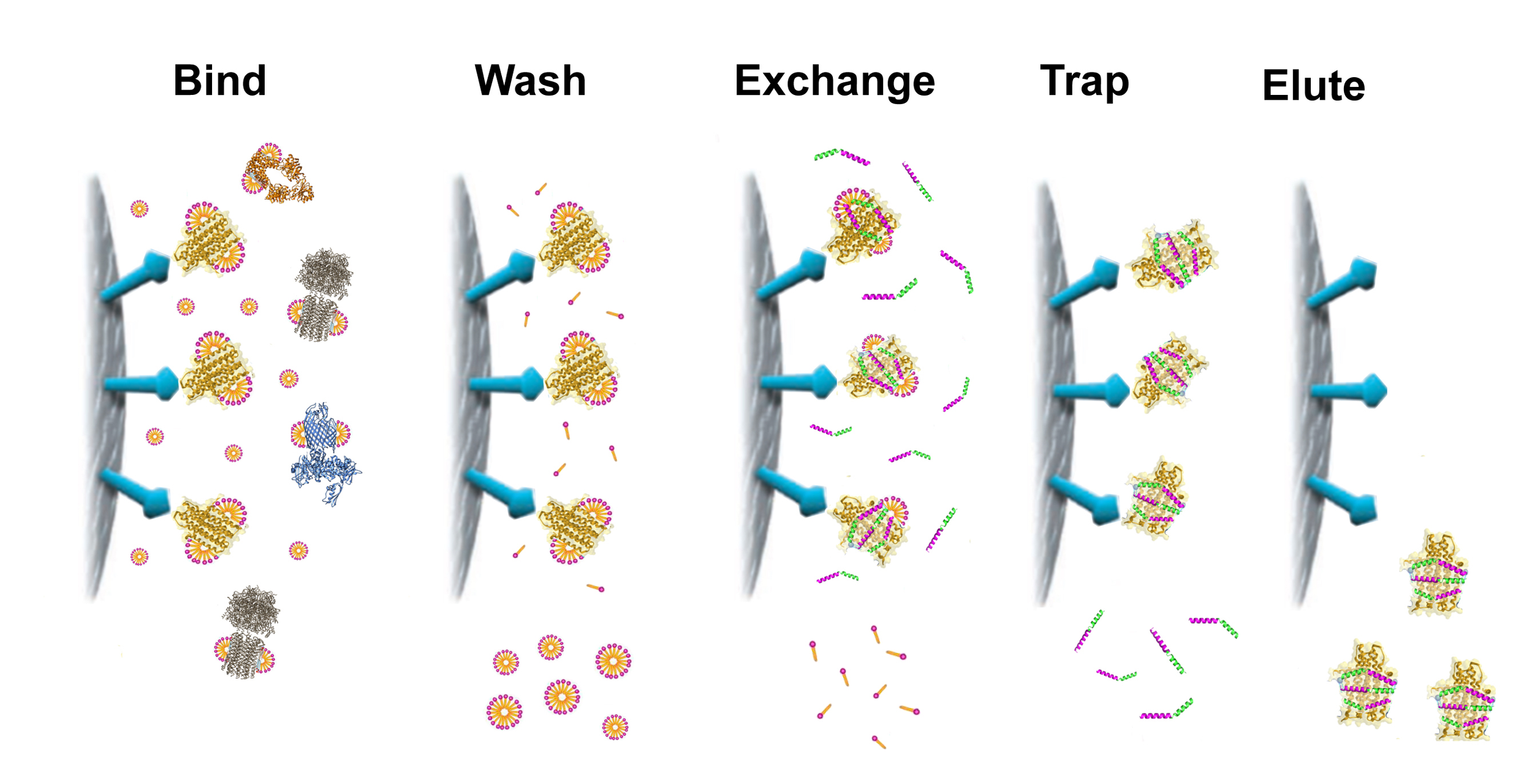

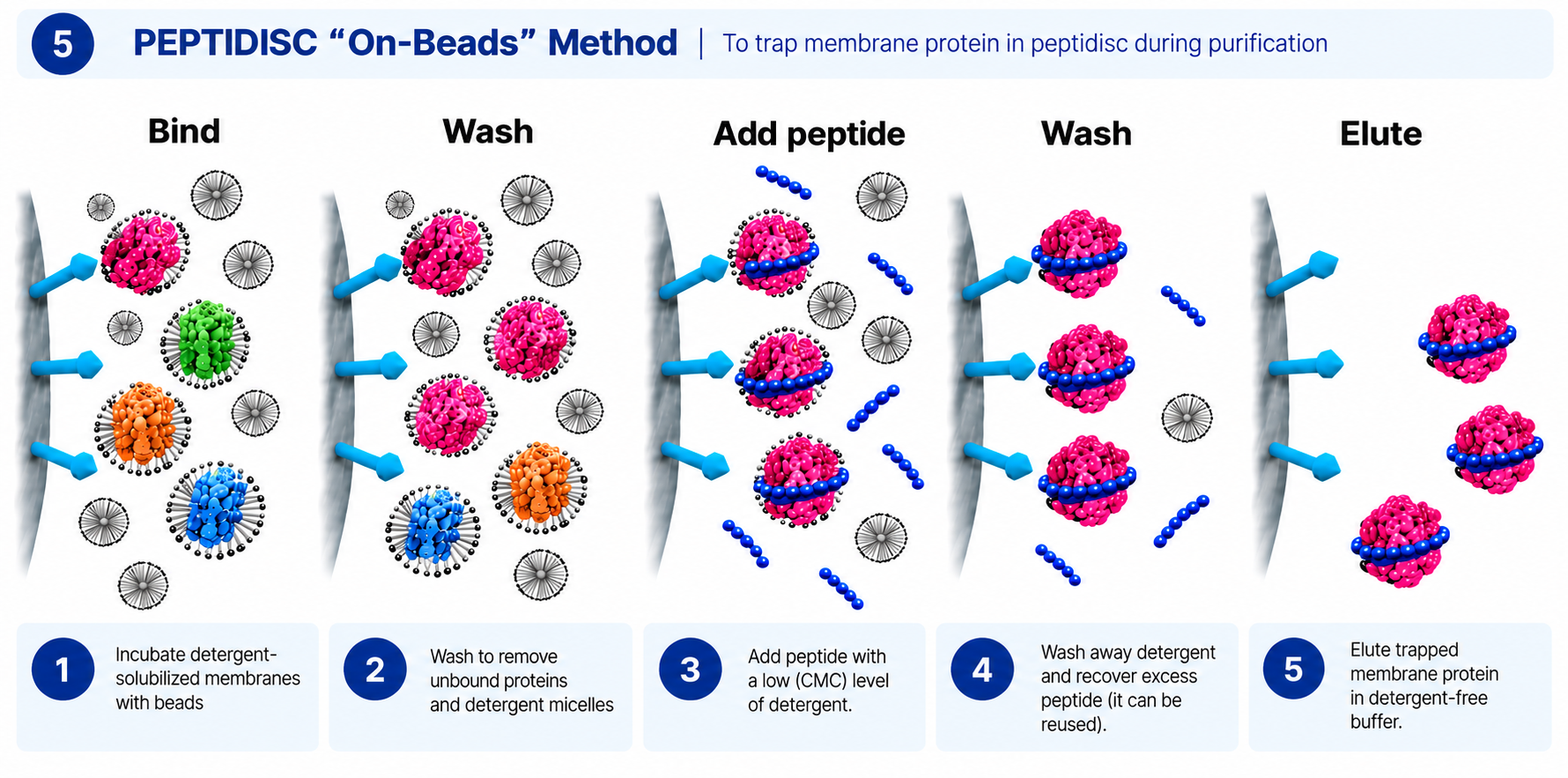

The "on-beads" method - to trap membrane protein in peptidisc during purification

1.    Bind the target membrane protein on affinity beads (e.g Ni-NTA).

2.    Wash away protein contaminants and excess detergent.

3.    Add peptide with low (CMC) level of detergent.

4.    Wash away detergent and recover excess peptide (it can be re-used).

5.    Elute trapped membrane protein in detergent-free buffer.
